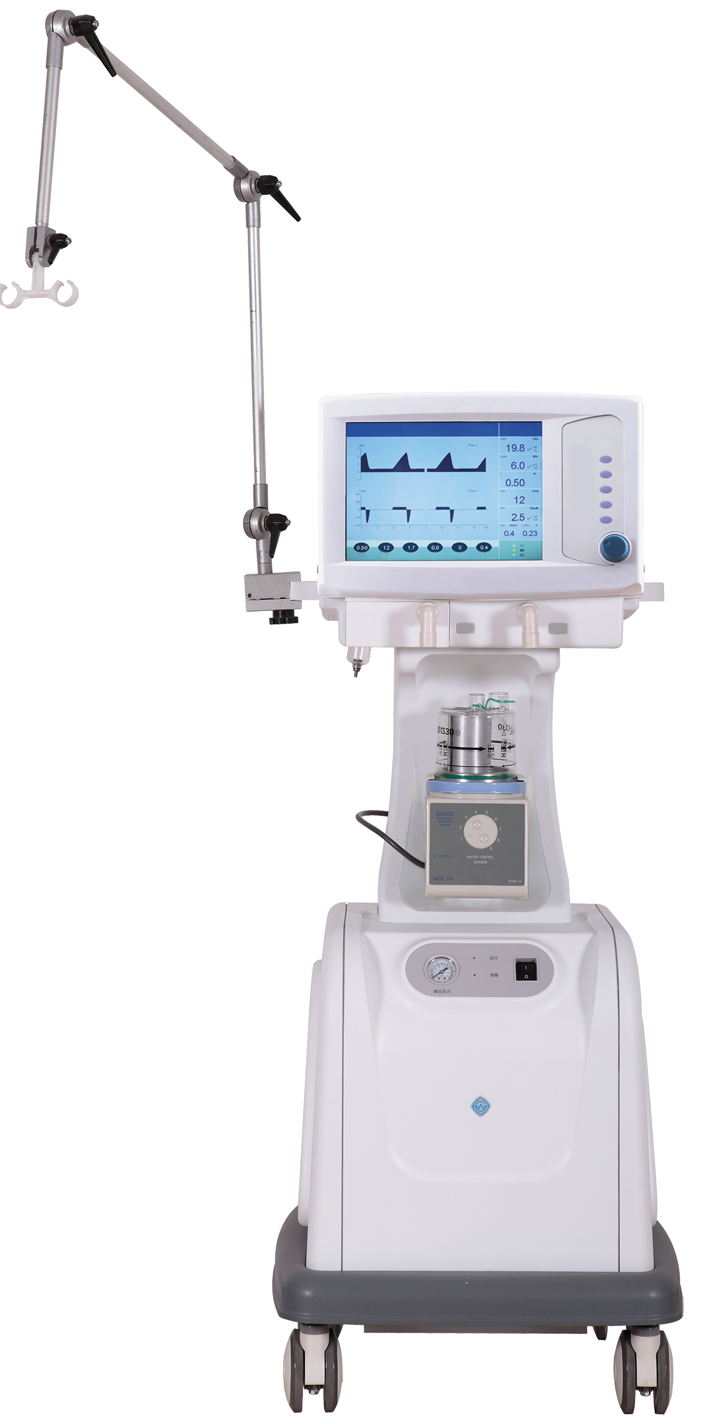

Intensive Care Ventilator KIV-A101
Website: www.Labopark Scientific.com
Email: info@Labopark Scientific.net
Intensive Care Ventilator KVI- A101 is a respiratory ventilator unit for invasive artificial respiration. Built-in provision for self-testing and calibration. The device is made up of high configuration intelligent control system that allows changes to be made according to user requirements.
| Tidal Volume | 20 ml ~ 500 ml |
| Standard Ventilation Mode | VCV, SIMV, PSV, PCV, CPAP, Manual, SIGH |
| Application | Adult/ Pediatric Invasive |
| Pressure Range | 5 mbar ~ 80 mbar |
| Respiration rate range | 1 bpm ~ 99 bpm 1 bpm ~ 40 bpm under SIMV |
| I:E Ratio | 4:1 to 1:8 |
| Oxygen Concentration | 21 % ~ 100 % |
| Pressure trigger Range | -20 to 20 cmH2O |
| PEEP Type | Integrated, Electronic Control |
| PEEP Range | 0 to 30 cmH2O |
| Gas Supply | O2, Air ( 280 kPa ~ 600 kPa ) |
| Alarm | Visual : No tidal volume, MV, Paw, FiO2 limitation O2, Air failure, AC power failure, low back up Audio: No tidal volume, MV, Paw, FiO2 limitation |
| Display | 12.1” Color LCD |
| Graphic Display | Waveforms of P-T, F-T, V-T |
| Operating Temperature | 5 °C ~ 40 °C |
| Storage Temperature | -10 °C to 40 °C |
| Relative Humidity | ≤ 80 % |
| Atmospheric Pressure | 96 kPa ~ 104 kPa |
| Battery | Lead acid 12V, 4Ah (120 mins run time) |
| Output Pressure | 0.4 mPa ± 0.1 mPa |
| Noise | ≤ 50 dB |
| Power Supply | AC 220 V ± 10 %, 50 Hz ± 2 % |
| Dimension | 450 x 550 x 1400 mm |
| Weight | 65 kgs |
Used in operating rooms, surgical care wards, intensive care unit, and other departments for pulmonary life-support during acute lung injury or respiratory distress which result in inadequate oxygenation or ventilation inability to protect the airway fluids.
